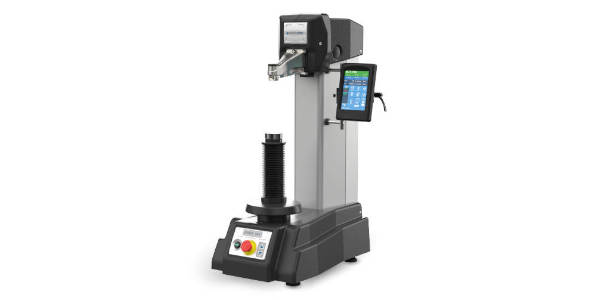

HAWK 400RS

เครื่องทดสอบความแข็งแบบร็อคเวลล์ รุ่น Hawk 400RS

The HAWK 400RS is a taller version of the 250RS.

Similar to the 250RS it provides a vertical indentation process, load cell (test force measurement) on indenter position and the optional clamp that fixes your work pieces firmly on the test anvil or table.

This taller version of the Hawk increases the sample height to 400 mm while maintaining the 200 mm throat depth. When selecting the option of the automatic spindle, the full process of lifting, clamping, test procedure on your sample will be performed by only 1 touch of the "Start" icon on the touch screen. The I-TOUCH™ work flow controller effortlessly leads you through all advanced functionality including options to print or export data to MS Office applications or to store files on a regular USB drive.

  • Scales: Rockwell, Superficial Rockwell (Brinell optional)
  • Test forces: 1kgf-187.5kgf
  • 3kgf, 10kgf pre-load, 15, 30, 45, 60, 100, 150kgf main load
  • Load app. System: Fully automatic, Load cell, closed loop, force feedback. Absolute linear applied test force, no lever construction
  • Display: 6.5" industrial full color touch screen
  • Software: I-TOUCH software system, advanced tester control
  • Memory: Large internal memory stores 150 readings
  • Output: USB
  • Illumination: Power LED near indenter for bright sample illumination
  • Bottom Shell: Replaceable ABS covers avoids body damage
  • Workpiece Acc: 400mm (H) X 200mm (D)
