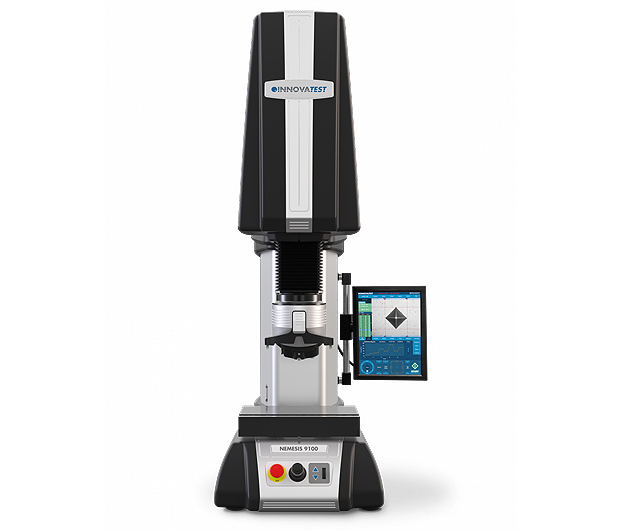

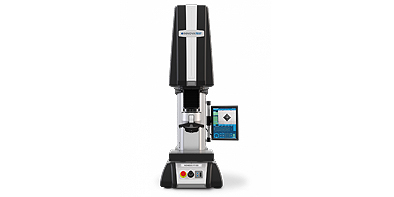

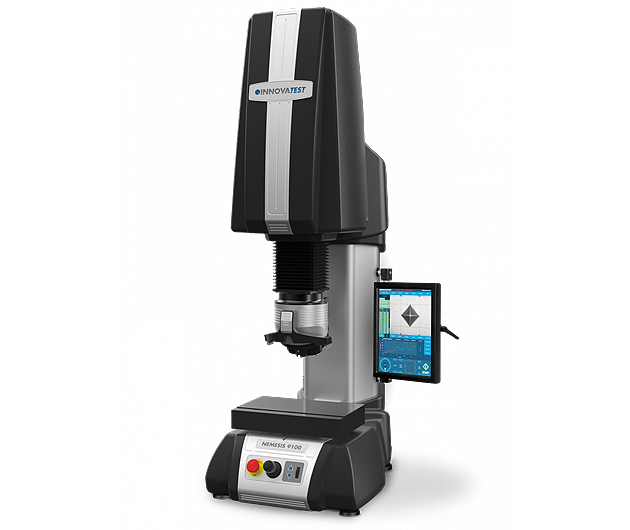

NEMESIS 9100
เครื่องทดสอบความแข็งแบบอเนกประสงค์ รุ่น Nemesis 9100
The Nemesis 9100 is the most revolutionary, advanced and powerful Universal Hardness Tester currently available. In its ultimate configuration and most advanced version, the NEMESIS 9100 offers fully automatic advanced coordinate pattern, weld pattern and free style testing of metallic and plastic parts in any of the hardness scales.
- Micro/Macro Vickers, Knoop, Brinell, Rockwell, Superficial Rockwell, HVD, HBD, Plastic ISO 2039 1/2, Carbon
- Load cell, force feedback, closed loop system, fully automatic, servo motor driven
- Load range: 100gf - 250kgf (9101) 200gf - 3000kgf (9103)
- Motorized turret:
- 8 positions; 3 indenter positions, 3 objectives positions, overview camera, laser position ndicator, multi load cell system
- Optical system:
- 4K, Full HD, 18 Megapixels, Machine vision system
- Objectives:
- 0.7x, 2.5x, 5x, 10x, 20x
- Overview camera:
- Cam 2 5MP optical ZOOM camera, variable field of view 50 x 37mm / 200 x 160mm
- Class 2 Laser positioning system
- Electronic system:
- High performance embedded micro system controller, MS Windows®, 15” full color industrial touch screen, automatic and manual measurement, Dual Vision. Multi Screen solution (optional).
- IMPRESSIONS V2, work flow system & tester control
- Test loads:
- 100gf, 200gf, 300gf, 500gf, 1kgf, 1.25kgf, 2kgf, 2.5kgf, 3kgf, 4kgf, 5kgf, 6.25kgf, 7kgf, 7.8125kgf, 10kgf, 15kgf, 15.625kgf, 20kgf, 30kgf, 31.25kgf, 40kgf, 50kgf, 60kgf, 62.5kgf, 80kgf, 100kgf, 120kgf, 125kgf, 150kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
- Vickers:
- HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV4, HV5, HV10, HV20, HV25, HV30, HV40, HV50, HV60, HV100, HV120, HV125, HV150; all available for the HVD scale
- Knoop:
- HK0.1, HK0.2, HK0.3, HK0.5, HK1, HK2, HK5, HK10, HK20, HK30, HK50
- Rockwell & Superficial Rockwell:
- Pre Load 3kgf & 10kgf, Main Load 15kgf, 30kgf, 45kgf, 60kgf, 100kgf & 150kgf
- Brinell:
- HB1/1kgf, HB1/2.5kgf, HB1/5kgf, HB1/10kgf, HB1/30kgf; HB2.5/6.25kgf, HB2.5/15.625kgf, HB2.5/31.25kgf, HB2.5/62.5kgf; HB5/25kgf, HB5/62.5kgf, HB5/125kgf HB5/250kgf; HB10/100kgf, HB10/250kgf, HB10/750kgf, HB10/1000kgf, HB10/1500kgf, HB10/3000kgf, *All test forces are also available for the HBD scales
- ISO 2039 1/2 for plastics:
- 49,03 N, 132,9 N, 357,9 N, 961 N
- Carbon:
- HR 2,5/7, HR 5/7, HR 5/15, HR 5/20, HR 5/40, HR 5/60, HR 5/100, HR 5/150; HR 10/20, HR 10/40, HR 10/60, HR 10/100, HR 10/150
- Indenters:
- Certified indenters (ISO / ASTM) available at choice
- Test cycles:
- Fully automatic, automatic and manual.
- Standards:
- Complies to or exceeds, ISO, ASTM, JIS (Nadcap) standards
- Test force tolerance: ‹0.5% for test force 200gr to 3000kgf
- Display resolution:
- 0.1 HV, HK, 0.5 HB, 0.01HR
- Hardness conversion:
- Rockwell, Rockwell Superficial, Brinell, Vickers, Leeb& Tensile, material depending
- Statistics:
- Total test, max, min, average, range, standard deviation, all in real time after each test
- Data storage capacity:
- Dual SSD 120gb, RAID system
- Connectivity:
- USB, RJ45 LAN, W-LAN, HDMI, 5 axis; stage, rotary table, rotary head connector
- Dwell time setting:
- Default 10 seconds, user defined, 1 to 999 seconds (1 sec increments)
- Motorized CNC X-Y stage:
- Several models available, choice of fixtures for special applications dimensions.
