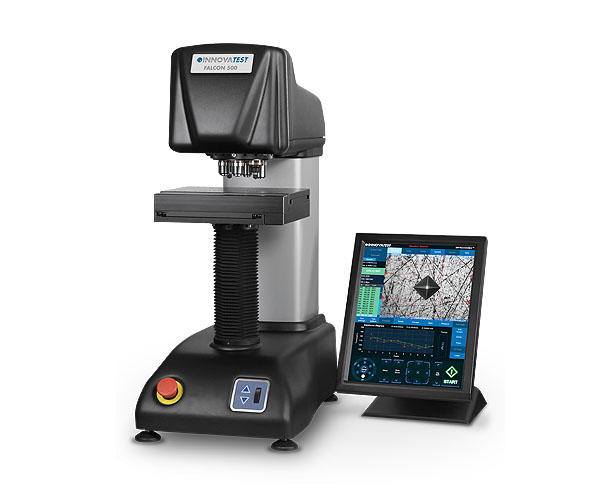

FALCON 500
เครื่องทดสอบความแข็งแบบวิคเกอร์ รุ่น Falcon 500
The FALCON 500 series, Micro Vickers, Vickers and Micro Brinell hardness testing machines are a new generation of instruments, improving conventional hardness testing methods and focused on eliminating user influence on the test results.
- Fully automatic Micro/Macro Vickers, Knoop & Brinell system
- Load cell, force feedback, closed loop system
- Load range 1gf up to 62.5Kgf
- Automatic test force setting
- Vickers Scales: HV0.001, 0.002, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.015, 0.020, 0.025, 0.050, 0.1, 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 4, 5, 10, 20, 25, 30, 40, 50
- Knoop Scales: HK/0.001, 0.003, 0.005, 0.01, 0.015, 0.02, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, 2, 5, 10, 20, 30, 50
- Brinell Scales: HB1/1Kgf, 1.25Kgf, 2.5Kgf, 5Kgf, 10Kgf, 30Kgf, HB2.5/6.25Kgf, 7.8125Kgf, 15.625Kgf, 31.25Kgf, 62.5Kgf, HB5/25Kgf, 62.5Kgf
- KIC fracture toughness
- Test force tolerance, <0,5% for test force 100gr to 62.5kg, <1% for test force below 100gr
- 15” Industrial HD Touch screen, Embedded Powerful Fanless System Controller, 80GB SSD data storage drive, Windows 7 Embedded, RJ45 LAN, WLAN, USB, RS-232, HDMI & VGA
- IMPRESSIONS™, full tester & configuration control, graphic indent simulation, test program setting for user defined test programs, large test results storage, 5 simultaneous conversions to other hardness scales, limit settings, advanced test report generator, CSV export, graphics display engine & many more functions
- Meets or exceeds ISO, ASTM and JIS standards
- Automatic Brightness, Contrast and Sharpness control
- Auto Focus
- Automatic indent measurement
- CAM 2 Zoom Overview (Optional)
- Calibrated stepless Indent ZOOM system
- Auto save, program setup, data storage
- Motorized Z-axis with dynamic Intelli control
- 2 indenter positions, 4 objective positions
- Quality optical system
- 5MP HD camera
- Collision detection and z-axis retraction system, avoids turret damage
- Connection for motorized X-Y stages (standard)
- Embedded 5 axis CNC controller (standard)
