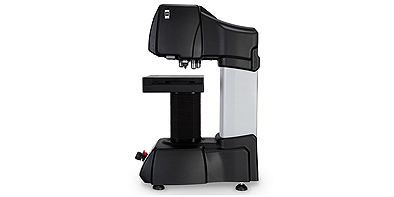

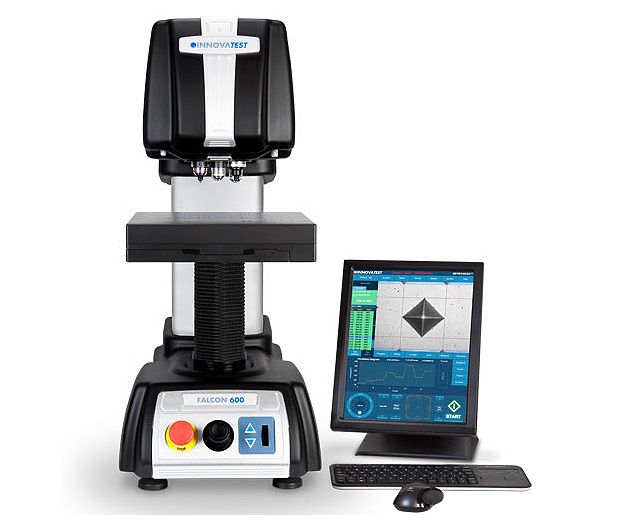

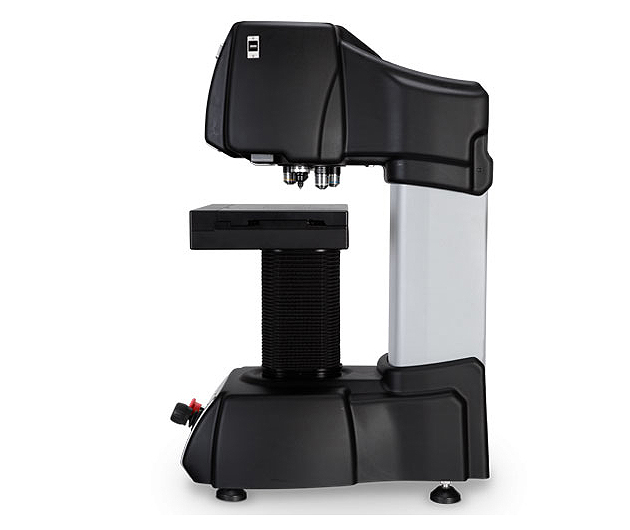

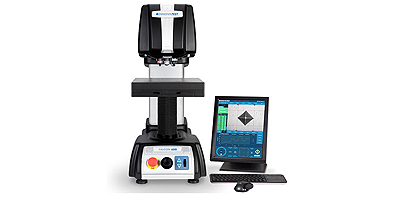

FALCON 600

เครื่องทดสอบความแข็งแบบวิคเกอร์ รุ่น Falcon 600

The FALCON 600 automated hardness testing system provides a fully integrated platform for all your complete Vickers, Knoop & low force Brinell hardness testing needs.

A standard force range of 1 gf to 62,5 kgf (optional going down to forces of 0,1 gf) to be used in combination with any thinkable software application, provides a hardness testing machine for today, tomorrow and better...for the future.

  • Vickers Scales: 1 gf - 50 kgf
  • Knoop Scales: 1 gf - 5 kgf
  • Brinell Scales: 1 kgf - 62, 5 kgf
  • Multi Load Cell, Closed Loop, Force application system, error <0,25%
  • 6 position turret, 2 identer positions, 4 LWD objectives installed (included)
  • Turret collision detection and workpiece retraction safety system
  • 18 Mega Pixel, 4K, full color integrated camera system
  • Full X-Y stage overview camera, optical zoom system, variable field of view
  • TTL power LED with color filter, Dual bank power LED stage illumination
  • Large CNC X-Y stage 300 x 200 mm, Z-axis with ball bearing spindle (standard)
  • Integrated system controller, i7 processor, mSSD system storage
  • Industrial 15" touch screen, option for second screen 15" to 55" or projector
