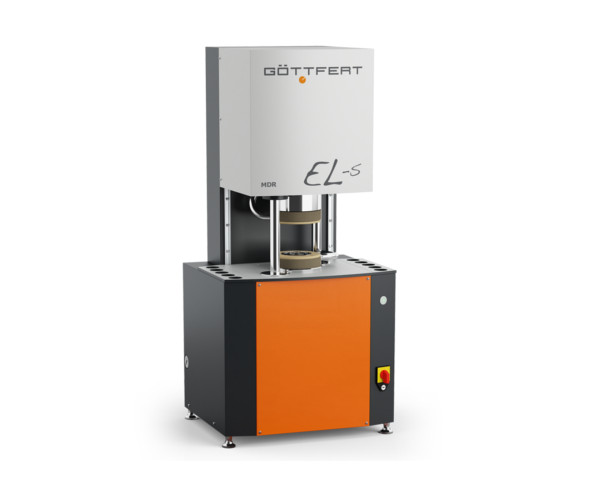

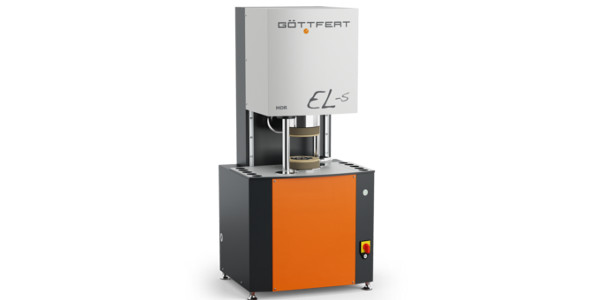

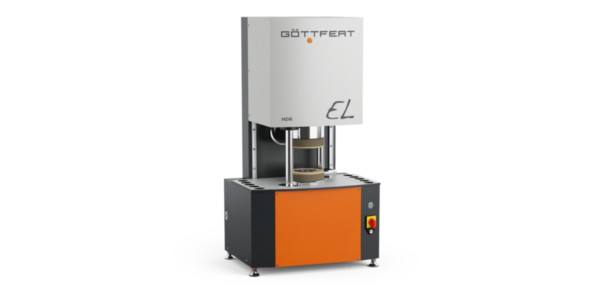

MDR Elastograph / S
เครื่องรีโอมิเตอร์แบบดายเคลื่อนที่ (MDR) รุ่น Elastograph / Elastograph S
The MDR ELASTOGRAPH is a Moving Die Rheometer which is used to determine the viscoelastic material behaviour in plastified state during vulcanisation and after vulcanisation of the material sample according highest ISO and ASTM standards
The instrument can be equipped with five different test chambers as well as different amplitudes. The GÖTTFERT Moving Die Rheometer is attractive for the characterization of rubber compounds in plastic states, during vulcanisation as well as vulcanized samples.
- Measurements with 50min-1 (0.833 Hz) / 100min-1 (1.66 Hz) selectable
- Two frequencies by fix or variable strain rates
- Different test chamber design for all kind of materials (shore, liquid, biconical open, closed)
- Extremely fast temperature control and a homogeneous temperature distribution in the reaction
- die
- Torque recording
- Build-in Ethernet interface for data transfer to a PC
- Deformation Amplitude : Standard +/- 0.5° (optionally selectable one additional angle between +/-
- 0.1° up to +/- 1°) – MDR Elastograph
- Direct drive system with variable deformation amplitude : from +/- 0.1° up to +/- 10°. Strain rate :
- from 1.4% - 55.8% - MDR Elastograph - S
