Features

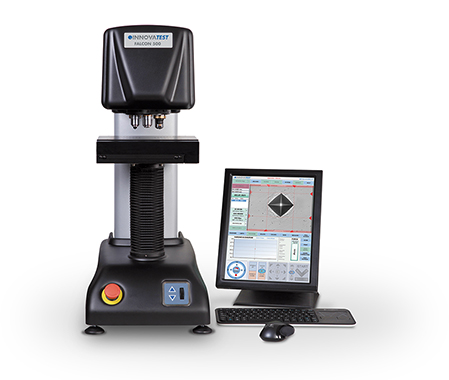

• Fully automatic Micro/Macro Vickers, Knoop & Brinell system
• Load cell, force feedback, closed loop system
• Load range 1gf up to 62.5Kgf
• Automatic test force setting
• Vickers Scales:
HV0.001, 0.002, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.015, 0.020, 0.025, 0.050, 0.1, 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 4, 5, 10, 20, 25, 30, 40, 50
• Knoop Scales:
HK/0.001, 0.003, 0.005, 0.01, 0.015, 0.02, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, 2, 5, 10, 20, 30, 50
• Brinell Scales:
HB1/1Kgf, 1.25Kgf, 2.5Kgf, 5Kgf, 10Kgf, 30Kgf; HB2.5/6.25Kgf, 7.8125Kgf, 15.625Kgf, 31.25Kgf, 62.5Kgf HB5/25Kgf, 62.5Kgf
• KIC fracture toughness
• Test force tolerance
<0,5% for test force 100gr to 62.5kg, <1% for test force below 100gr
• 15” Industrial HD Touch screen, Embedded Powerful Fanless System Controller, 80GB SSD data storage drive, Windows 7 Embedded, RJ45 LAN, WLAN, USB, RS-232, HDMI & VGA
