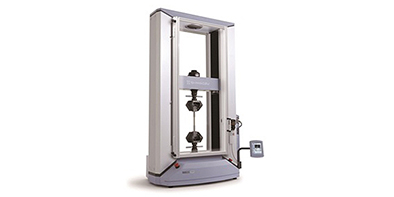

AG-Xplus Series
The most advanced precision universal tester from Shimadzu.
Capacity range: 10kN to 2000kN
AG-Xplus Series
- High Speed Option 5kN HS table top model provides crosshead speed of up to 3000 mm/min.
- Power Saving Power consumption is reduced in standby mode, cutting CO2 emissions and reducing the environmental stress. Power savings of 10 to 25% is possible depending on the frame capacity.
- Easy Stress Control and Strain Control Auto-tuning of control parameters in real time based on stress and strain data measured during testing. Reliable comparison with unknown sample data is possible without pre-testing. In addition, the auto-tuning function effortlessly provides the strain control required by ISO.
- Ultrafast Sampling Detects the Most Sudden Strength Fluctuations Ultrafast 0.2 msec (5 KHz) sampling easily detects sudden fluctuations in test force, such as the failure of brittle materials. The sampling conditions can be altered during testing for more detailed analysis of important areas.
- Eight times Increase in Control Resolution Enhance the Reliability of Test Results The control resolution of the speed affects the test results, especially in the low speed region. The AG-Xplus offers previously unheard-of high levels of resolution to achieve greater accuracy in test results.
- Highly Accurate Stress-Strain Curves Using High Precision Load Cell The wide guaranteed precision range of the load cell from 1/1000 to 1/1 ensures that virtually all testing can be performed without the need to switch load cell or jig, thereby improving testing efficiency.
- Highly Rigid Frame Guarantees Safety and Reliability All floor and table top type machines incorporate a crosshead guide that gives significantly high torsion rigidity to reduce movement and vibration.
