EB 27

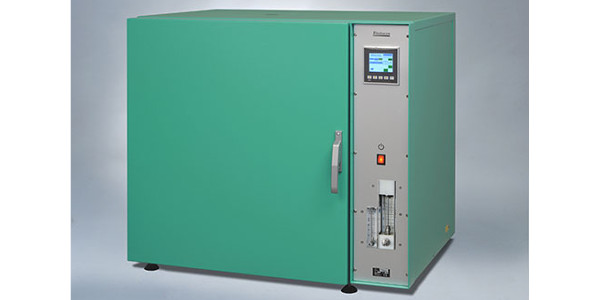

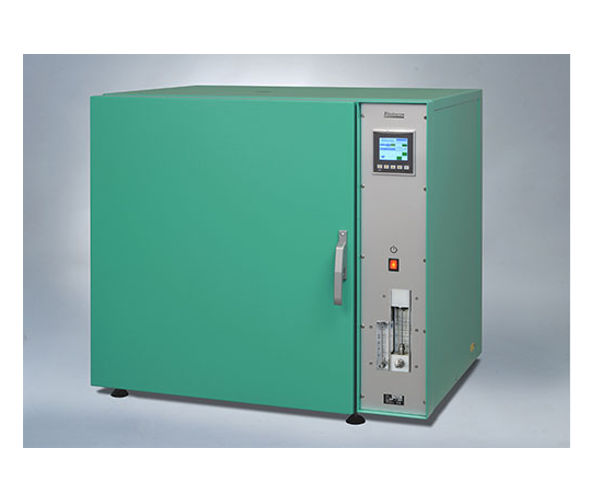

The EB 27 cabinet ageing oven from ELASTOCON is the ideal instrument to determine the ageing of plastics and rubber materials under controlled environment. It has a low speed air flowing through 2 flow meters that cover exchange rates between3 to 200 changes per hour. This instrument meets the requirements in ISO 188 method A, IEC 60811-1-2, IEC 60216-4-1, ASTM D5423 type 1 and 2, ASTM D573 and ASTM E145 type IIA. The oven comes in a 120 litres working volume size. This oven also has a rotating carousel for easy and quick mounting of up to 36 samples.
- Low air speed (0,001 to 0,02 m/s)
- Adjustable air exchange rate via flow meter, 3 to 20 changes per hour
- Temperature variation in time ± 0,25 °C
- Temperature variation in space ± 0,5 %
- Lag time: 800 s (ASTM D5423 type 2), 620 s (ASTM E145 Type IIA)
- Temperature indicator with sensor in the inner chamber (PLC)
- Temperature controller with 0,1 °C set point (PLC)
- Adjustable upper and lower temperature limits with alarm (PLC)
- Fixed over temperature fuse
- Controlled from a micro PLC, with a colour touch screen
- Test names can be given in the PLC
- Alarm for low air pressure (PLC)
- Improved insulation reduces energy consumption, environmental impact and cost
- Cooling channels in the casing for low surface temperature
- Indication of power failure (PLC)
- Run-time meter (PLC)
- Countdown timer for each cell (PLC)
- Alarm history
- Microfilter for the air which removes 99,99 % of all particles over 0,1 Μm
- Door with two point locking
- Easy shelf installation and removal
