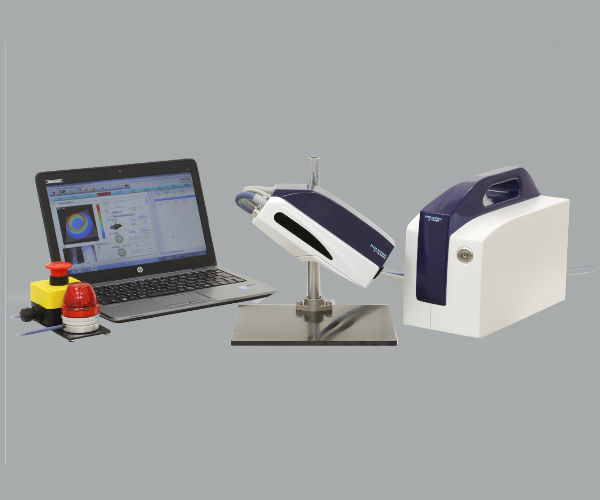

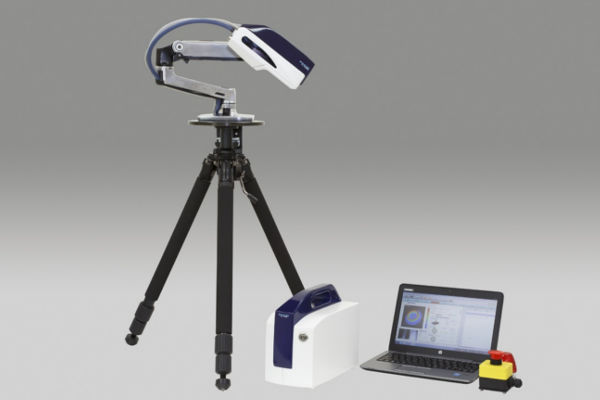

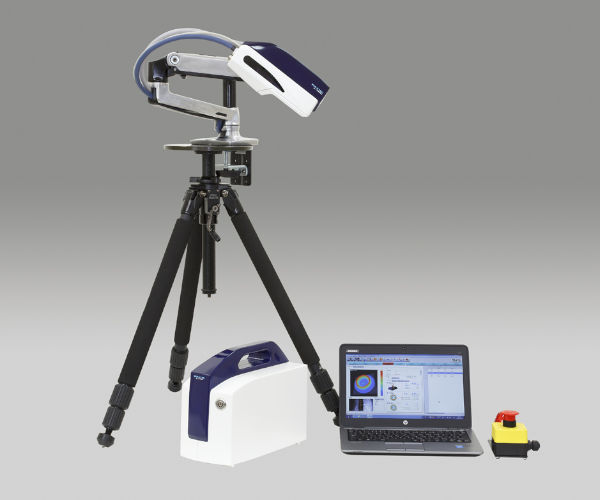

µ-X360s Portable X-ray Residual Stress Analyzer

เครื่องวัดความเค้นตกค้าง รุ่น Protable 360

The µ-X360s is the world's lightest and smallest residual stress analyser. It's a non-destructive measurement system for metals to obtain the residual stress, retained austenite and FWHM data base on X-ray diffraction technique.

For more information, please visit
www.pulstec.co.jp/en/en/product/

  • Portable & light weight - compact 2.4kg sensor unit; able to measure the internal of pipe down to diameter of 170mm
  • Easy setup - sample position tolerance +-5mm (built-in marker and CCD camera to assist sample positioning)
  • Fast measurement speed - 60 second per measurement point
  • High reliability & repeatability - measurement by cos α method ensures reliable and repeatable data; the 2D detector captures complete Debye ring
  • Safety - low power X-ray emission due to high sensitivity of detector; simple air cooling system
Item New model (µ-X360s)
Collimator size Standard: Φ1.0mm
(Illuminated surface: approx. Φ2.0mm)
Maximum measurement distance
(for Ferrite samples)
51mm
X-ray tube voltage & current 30KV / 1.5mA max.
X-ray tube Cr / Co / Cu / V / Mn
Possible to exchange the X-ray tube by user
Measurement method Single incident angle method
(cos α method)
Measurement item Residual stress / FWHM / Retained austenite (optional)
Target material Ferrite, aluminum, nickel, titanium, ceramics and etc.
Weight Sensor unit: approx. 2.4kg
Power supply unit: approx. 6.2kg
Sensor unit / Power supply unit Size / Weight Sensor unit: W114 x H107 x D213 (mm) / 2.4kg
Power supply unit: W159 x H235 x D289 (mm) / 6.2kg
CE marking Certified
Measurement time 60 secs / measurement point
Gyro sensor Display the sensor unit angle
